What is reverse osmosis equipment?
As an important part of contemporary sewage treatment technology, reverse osmosis equipment is widely used in various fields, including industrial water solutions and purification of domestic water. So, what exactly is reverse osmosis equipment? How does it work? Next, Wteya will explore in depth the basic principles, structure, main uses and key role of reverse osmosis equipment in modern society.
1. Working principle of reverse osmosis equipment
Reverse osmosis equipment (RO) uses the principle of pressure difference to promote water from high-concentration aqueous solution (or high-pressure aqueous solution) through a semipermeable membrane into a lower-concentration aqueous solution (or low-pressure aqueous solution). In this process, water can pass through the semipermeable membrane smoothly, and most of the impurities dissolved in the water, including carbonates, organic compounds and bacteria, will also be effectively blocked, thereby achieving water purification.
2. Structural design of reverse osmosis equipment
Reverse osmosis equipment is mainly composed of several parts, including pretreatment system, high-pressure water pump, reverse osmosis membrane assembly, control system and post-treatment system.
Pretreatment system
The pretreatment system of the reverse osmosis equipment is responsible for the preliminary treatment of the source water, removing suspended particles, colloidal solutions and organic compounds in the water to ensure that the reverse osmosis membrane components are not contaminated and damaged. Common pretreatment methods include activated carbon filters, quartz sand filters and softening water equipment.
High-pressure water pump
The high-pressure water pump is an important part of the reverse osmosis equipment. Its main function is to pressurize the pretreated water to a specific working pressure and force the water to pass through the reverse osmosis membrane. The performance of the high-pressure water pump has a direct impact on the water production capacity and desalination effect of the reverse osmosis equipment.

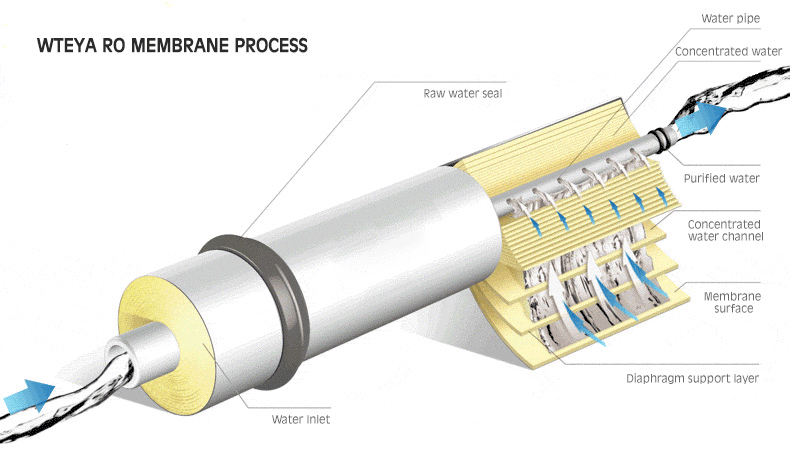

Reverse osmosis membrane assembly
The core part of the reverse osmosis equipment includes several uniquely designed reverse osmosis membranes. The membrane allows water to pass through under high pressure while effectively blocking impurities in the water to ensure the purity of the water.
Automatic control system
The automatic control system of the reverse osmosis equipment is responsible for monitoring and adjusting the operating status of the equipment to ensure the safe and efficient operation of the equipment. The system is usually equipped with components such as PLC (programmable logic controller), touch screen, and sensor.
Post-treatment system
The post-treatment system can further process the water purified by the reverse osmosis equipment to meet the water quality standards for different purposes. Common post-treatment processes include ultraviolet sterilization, ozone sterilization and activated carbon filtration.
3. Application industries of reverse osmosis equipment
Industrial water
Reverse osmosis equipment is widely used in industrial fields, such as power engineering, electronic manufacturing, chemical and pharmaceutical industries. These industries have strict requirements on water quality and need to effectively remove various impurities in the water to ensure the stability of the production process and product quality.
Purification of domestic water
With the improvement of living standards, people have increasing requirements for the safety and purity of drinking water. Reverse osmosis equipment can quickly remove impurities, viruses and heavy metals in water to improve the safety of drinking water. Nowadays, many families have installed household reverse osmosis water purifiers to ensure healthy drinking water.
Desalination of seawater
Reverse osmosis equipment is one of the key technologies to cope with global water shortages. Membrane separation technology allows seawater to be converted into drinking water after treatment, with the advantages of high efficiency, energy saving and environmental protection.
Sewage treatment
Membrane separation technology has also been widely used in sewage treatment. Through reverse osmosis equipment, industrial wastewater and domestic sewage can be fully treated, harmful substances can be removed, and sewage can be recycled and environmentally friendly.
4. The role of reverse osmosis equipment in the development of modern society
Reverse osmosis equipment plays a vital role in the application of contemporary sewage treatment technology, ensuring the safety of people's water resources and promoting sustainable development. With reverse osmosis equipment, water sources can be effectively utilized and purified to create a healthier and safer living environment for people. At the same time, the advancement of membrane separation technology has also promoted the development of related industries and promoted economic prosperity.
Wteya has been focusing on reverse osmosis treatment for more than 15 years, providing one-stop solutions, including services from preliminary consultation, equipment selection, design scheme to installation and commissioning and post-maintenance. Wteya reverse osmosis equipment has the characteristics of high efficiency and energy saving, high degree of automation, and easy operation. It can effectively remove salt, heavy metals and harmful substances in water to ensure pure water quality. Wteya also provides regular equipment inspection and maintenance services to extend the service life of the equipment and help customers reduce operating costs. With strong technical support and reliable product quality, Wteya reverse osmosis equipment has been widely recognized in the industry.
Where to buy a reverse osmosis equipment?
If you are looking for reliable, efficient and environmentally friendly water treatment solutions, WTEYA Group offers cutting-edge reverse osmosis water treatment plants designed to meet your needs. Whether you are applying water for residential, commercial or industrial purposes, our integrated systems provide high-quality water treatment. To learn more about our products, including desalination plants, reverse osmosis systems and mobile water treatment units, contact us today at info@wteya.com or WhatsApp +86-1800 2840 855.
